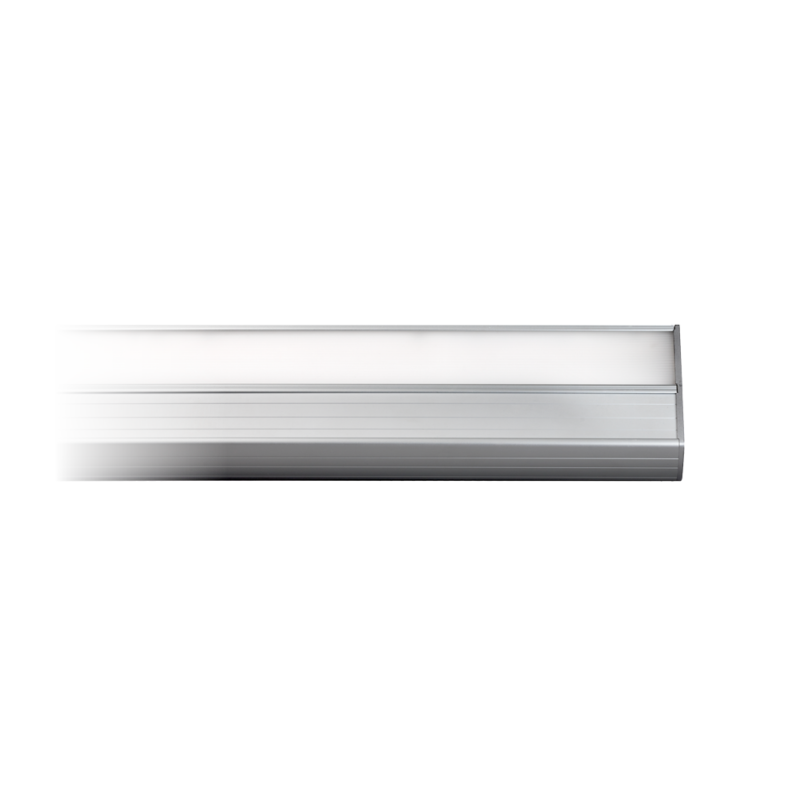

IGM Cast Linear Light

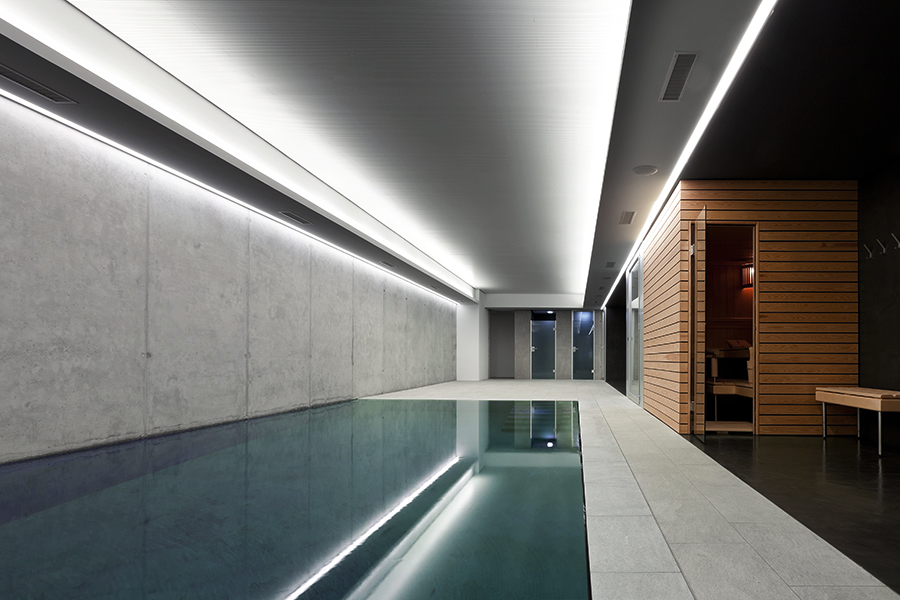

The Cast Linear Light is a comprehensive indirect pelmet luminaire system for a range of applications. The Cast Linear Light comes designed with an angled LED board, linear lens and a uniquely designed clip-system to emit a forward-throw asymmetrical beam. With three output models available (High Efficiency, High Output and Ultra High Output)
the Cast Linear Light provides a wide range of lighting outputs to cover each project requirement.

Silver
Xóa
Tùy chọn

  • Type

    High Efficiency (HE)
  • Absolute Luminous Flux (White Honeycomb)

    580mm (8W)
    1032lm (at 3000K)
    1101lm (at 4000K)
  • 1140mm (16W)
    2107lm (at 3000K)
    2256lm (at 4000K)
  • 2260mm (32W)
    4214lm (at 3000K)
    4512lm (at 4000K)
  • Bean

    110° (F)
  • Type

    High Output (HO)
  • Absolute Luminous Flux (White Honeycomb)

    300mm (8W) - DALI only
    968lm (at 3000K)
    980lm (at 4000K)
  • 580mm (16W)
    2021lm (at 3000K)
    2086lm (at 4000K)
  • 1140mm (32W)
    4216lm (at 3000K)
    4296lm (at 4000K)
  • 2260mm (63W)
    8433lm (at 3000K)
    8591lm (at 4000K)
  • Bean

    110° (F)

Thông số kỹ thuật

Finish

Anodised Silver

Material

Extruded Aluminium

IP Rating

IP20

Warranty

5 Years

Colour Temp

2700K
3000K
4000K
5000K
2700K-6500K

CRI

80+ (R9: >0)

Efficacy

Up to 129lm/W

Colour Deviation

SDCM≤3

Lifetime

>60,000h L80B10
