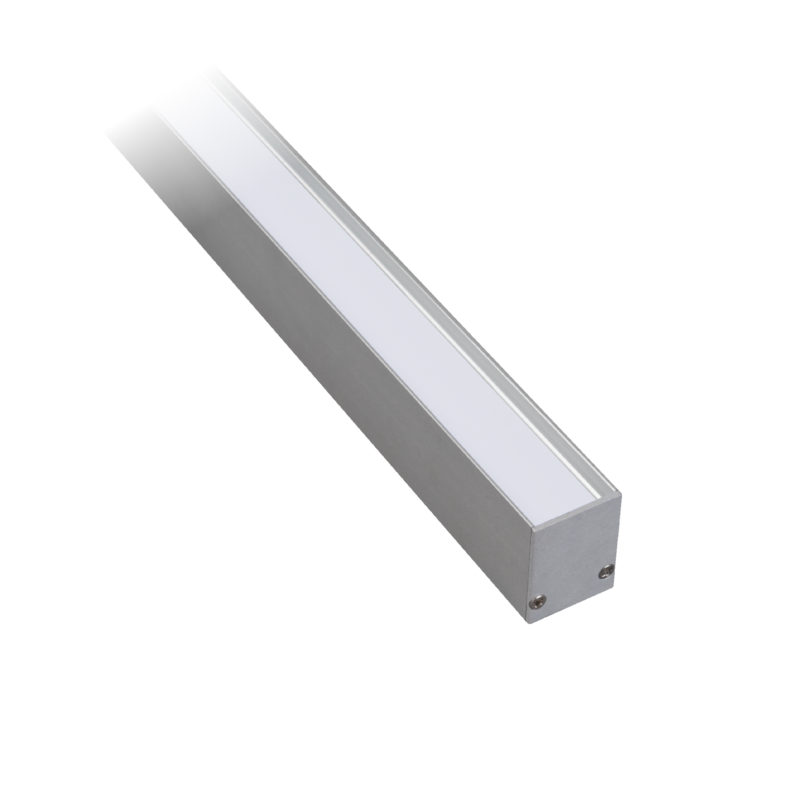

IGM Eclipse G2 Cloud Series

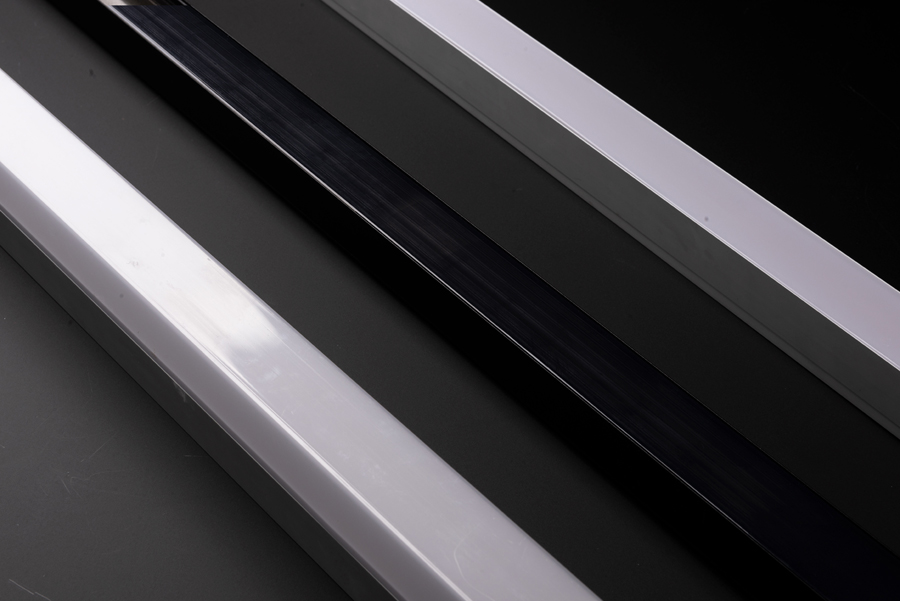

The Cloud series facilitates easy installation with a revolutionary hidden-clip system for surface and recessed applications. Suspend using the perfectly-engineered canopy with integrated power to provide the ultimate in sleek design. The diffuser options also provide great variations in effect with flush, baffled and Horizon options.

Black
Silver
White
White/Black
Xóa
Tùy chọn

  • Type

    Cloud CS20
  • MountingSurface

    Surface Mounted /
    Suspended
  • Absolute Luminous Flux (White Honeycomb)

    5W (24V DC)
    176lm (at 2700K)
    191lm (at 3000K)
    204lm (at 4000K)
  • 10W (24V DC)
    336lm (at 2700K)
    366lm (at 3000K)
    390lm (at 4000K)
  • 15W (24V DC)
    492lm (at 2700K)
    536lm (at 3000K)
    571lm (at 4000K)
  • 20W (24V DC)
    653lm (at2700K)
    711lm (at 3000K)
    758lm (at 4000K)
  • Bean

    110° (F)
  • Cable Entry

    Rear entry
    End entry
    Side entry

Thông số kỹ thuật

Material

Powder Coated Aluminium, PMMA Diffuser

IP Rating

IP20
IP67 (Strip)

Warranty

5 Years

Colour Temp

2700K
3000K
4000K
RGB
RGBW
2700K-6500K

CRI

90+ (R9: >50)
N/A
80+ (R9: >0)

Efficacy

Up to 57lm/W

Colour Deviation

SDCM≤3
SDCM≤4

Lifetime

>54,000h L80B10
