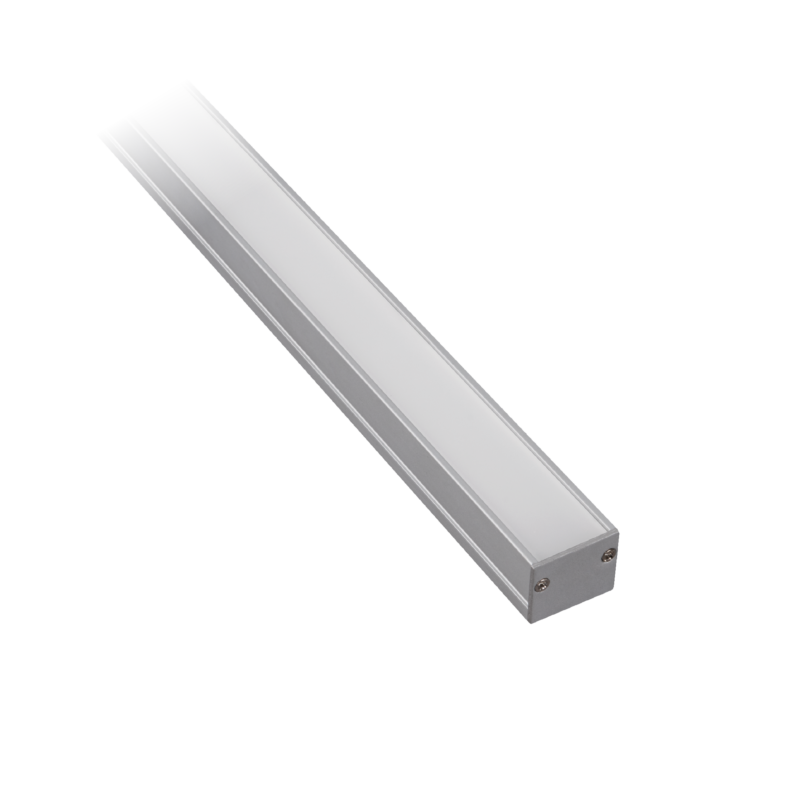

IGM Eclipse G2 Glide S Series

The Glide S series is highly versatile with surface mount, recessed and angled variations. Paired with the EC10 (10mm) LED strip, harmonious illumination with superior colour rendering at CRI90+, this range suits any architectural structure.

Tùy chọn

Type
Glide S GS19
MountingSurface
Surface Mounted
Absolute Luminous Flux (White Honeycomb)
5W (24V DC)
226lm (at 2700K)
245lm (at 3000K)
262lm (at 4000K)
10W (24V DC)
448lm (at 2700K)
480lm (at 3000K)
512lm (at 4000K)
15W (24V DC)
659lm (at 2700K)
701lm (at 3000K)
734lm (at 4000K)
20W (24V DC)
874lm (at 2700K)
930lm (at 3000K)
974lm (at 4000K)
Bean
110° (F)
Cable Entry
Rear entry
End entry
Side entry

Thông số kỹ thuật

Material

Powder Coated Aluminium, PMMA Diffuser

IP Rating

IP20
IP67 (Strip)

Warranty

5 Years

Colour Temp

2700K
3000K
4000K
RGB
RGBW
2700K-6500K

CRI

90+ (R9: >50)
N/A
80+ (R9: >0)

Efficacy

Up to 69lm/W

Colour Deviation

SDCM≤3
SDCM≤4

Lifetime

>54,000h L80B10

Mô tả sản phẩm

Nội dung đang cập nhật
