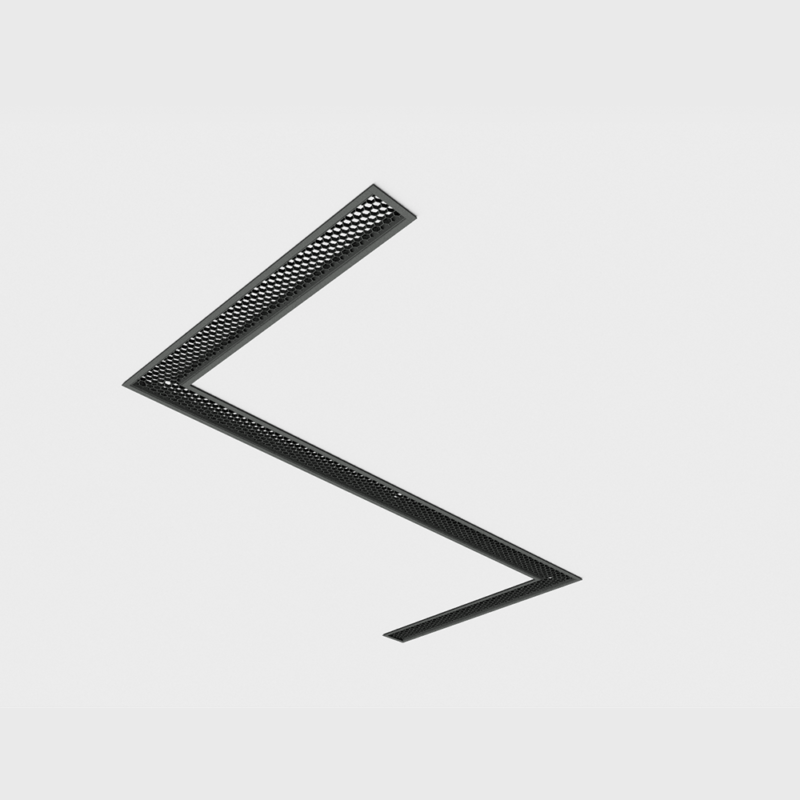

HOCO-TB-RE-S

IGM-Honeycomb Linear Series

Type
Honeycomb (Direct)
MountingSurface
Surface Mounted /
Suspended
Absolute Luminous Flux
(White Honeycomb)
22W/m
1866lm/m (at 2700K)
1919lm/m (at 3000K)
2011lm/m (at 4000K)
Absolute Luminous Flux
(Black Honeycomb)
22W/m
726lm/m (at 2700K)
747lm/m (at 3000K)
783lm/m (at 4000K)
Beam80
80° (F)

Type
Honeycomb (Indirect)
MountingSurface
Suspended
Absolute Luminous Flux
(White Honeycomb)
34W/m
3400lm/m (at 2700K)

3497lm/m (at 3000K) 3666lm/m (at 4000K)
Absolute Luminous Flux
(Black Honeycomb)
34W/m
2261lm/m (at 2700K)
2325lm/m (at 3000K)
2437lm/m (at 4000K)
Beam80
80° (F)

Type
Honeycomb (Recessed Spring)
MountingSurface
Recessed Spring
Absolute Luminous Flux
(White Honeycomb)
22W/m
1866lm/m (at 2700K)
1919lm/m (at 3000K)
2011lm/m (at 4000K)
Absolute Luminous Flux
(Black Honeycomb)
22W/m
726lm/m (at 2700K)
747lm/m (at 3000K)
783lm/m (at 4000K)
Beam80
80° (F)

Type
Honeycomb (Recessed Clip)
MountingSurface
Recessed Clip
Absolute Luminous Flux
(White Honeycomb)
22W/m
1866lm/m (at 2700K)
1919lm/m (at 3000K)
2011lm/m (at 4000K)
Absolute Luminous Flux
(Black Honeycomb)
22W/m
726lm/m (at 2700K)
747lm/m (at 3000K)
783lm/m (at 4000K)
Beam80
80° (F)

Thông số kỹ thuật

Finish

Textured Black
Black/White Trim
White/Black Trim
Textured White

Material

Powder Coated Aluminium, PC Diffuser

IP Rating

IP40

UGR

<10
<19

Warranty

5 Years

Colour Temp

2700K-6500K
2700K
3000K
4000K

CRI

80+ (R9: >0)

Efficacy

33lm/W
35lm/W
84lm/W
86lm/W
90lm/W
67lm/W
69lm/W
73lm/W
102lm/W
104lm/W
109lm/W

Lifetime

>60,000h L80B10
