IGM Linear Series 2

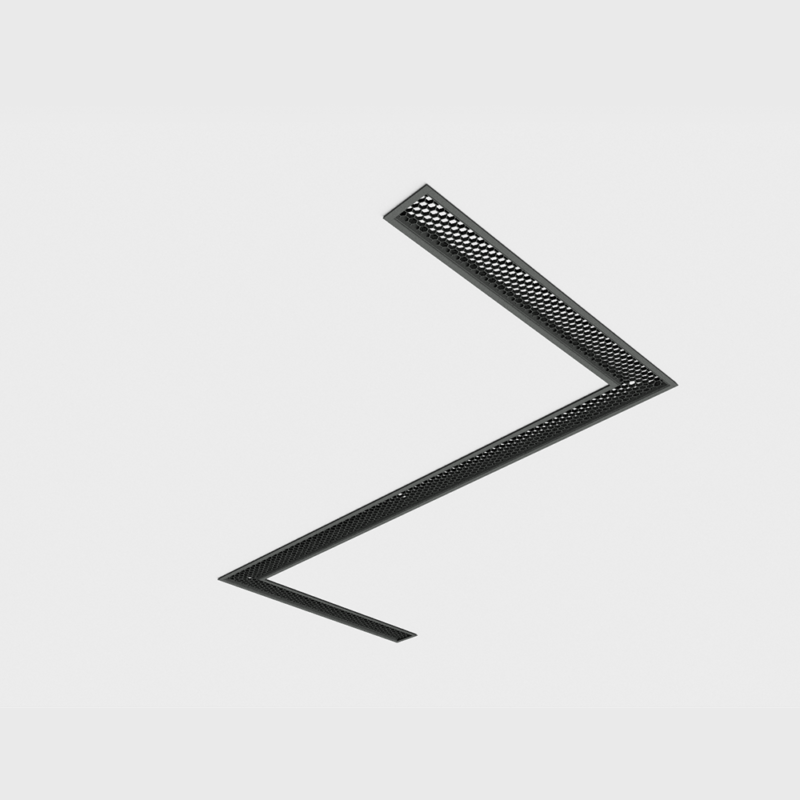

The Honeycomb LX is designed for architectural aesthetic and high performance. The distinctive optics layer reduces glare from all angles. Perfectly suited to recess, surface mount or suspended. By using the rod or wire suspension kit, there is an option for indirect lighting. Combine the six fundamental shapes to create up to 50m of striking geometric installations – with zero light leakage. Try the LX Configurator.

Black
White
Xóa
Tùy chọn

  • Type

    LX Infinity Lens (Direct)
  • MountingSurface

    Surface Mounted /
    Suspended
  • Absolute Luminous Flux (White Honeycomb)

    22W/m
    1866lm/m (at 2700K)
    1919lm/m (at 3000K)
    2011lm/m (at 4000K)
  • Absolute Luminous Flux (Black Honeycomb)

    22W/m
    726lm/m (at 2700K)
    747lm/m (at 3000K)
    783lm/m (at 4000K)
  • Bean

    80° (F)

Thông số kỹ thuật

Finish

Textured Black
Textured White

Material

Powder Coated Aluminium, PC Diffuser

IP Rating

IP40

UGR

<19

Warranty

5 Years

Colour Temp

2700K-6500K
2700K
3000K
4000K

CRI

80+ (R9: >0)

Efficacy

33lm/W
35lm/W
84lm/W
86lm/W
90lm/W
67lm/W
69lm/W
73lm/W
102lm/W
104lm/W
109lm/W

Colour Deviation

SDCM≤3

Lifetime

>60,000h L80B10
