IGM Lens Linear Series

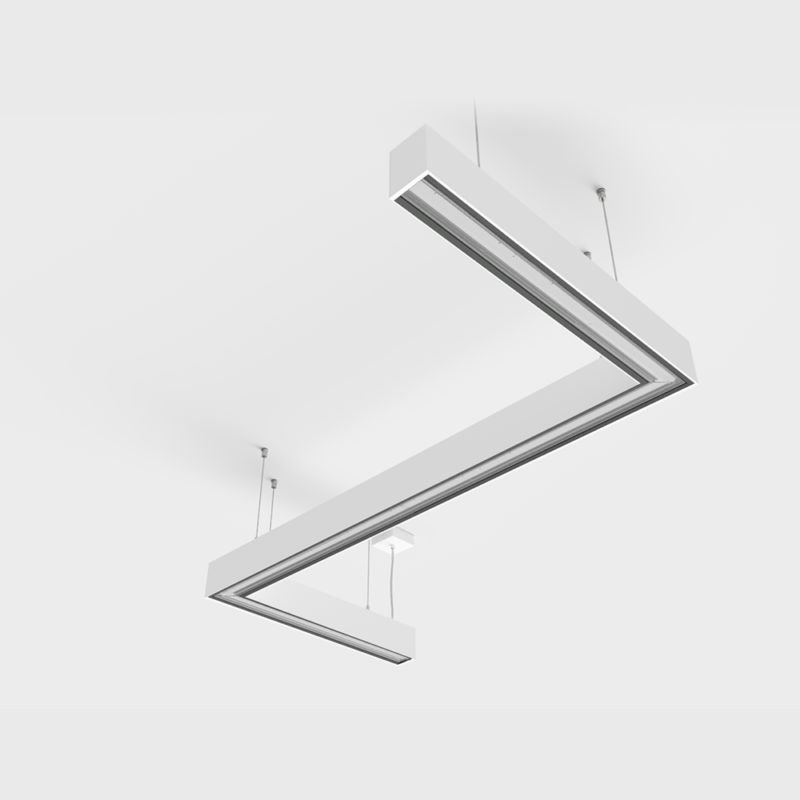

The unique Direct Lens LX creates visual consistency with a directed 60° beam that maximises horizontal illuminance. Perfectly suited to recess, surface mount or suspended. By using the rod or wire suspension kit, there is an option for indirect lighting. Combine the six fundamental shapes to create up to 50m of striking geometric installations – with zero light leakage. Try the LX Configurator.

Black
White
Xóa
Tùy chọn

  • Type

    IGM-LN3 Lens (Direct)
  • MountingSurface

    Surface Mounted /
    Suspended
  • Absolute Luminous Flux (White Honeycomb)

    22W/m
    2900lm/m (at 2700K)
    2993lm/m (at 3000K)
    3155lm/m (at 4000K)
  • Bean

    60° (W)

Thông số kỹ thuật

Finish

Textured Black
Textured White

Material

Powder Coated Aluminium, PC Diffuser

IP Rating

IP40

UGR

<19

Warranty

5 Years

Colour Temp

2700K-6500K
2700K
3000K
4000K

CRI

80+ (R9: >0)

Efficacy

130lm/W
134lm/W
141lm/W
132lm/W
136lm/W
144lm/W

Colour Deviation

SDCM≤3

Lifetime

>60,000h L80B10
