IGM-Mirage Downlight Series

Tùy chọn

Type

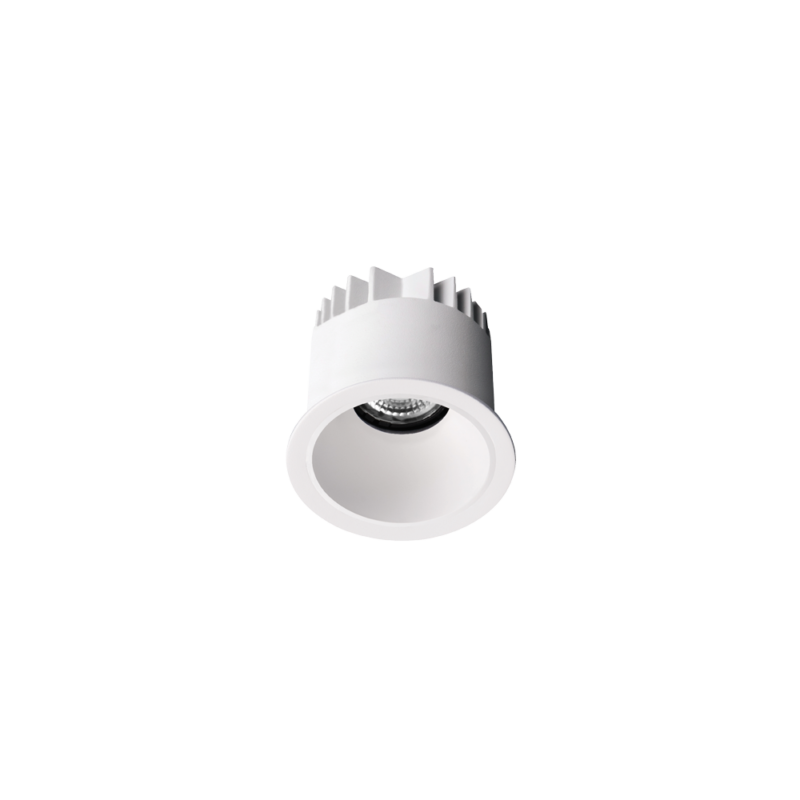

Mirage M84 Downlight
Absolute Luminous Flux
8W (250mA)
591lm (at 3000K)
633lm (at 4000K)
11W (350mA)
760lm (at 3000K)
802lm (at 4000K)
Beam
25° (N) | 50° (M)

Type

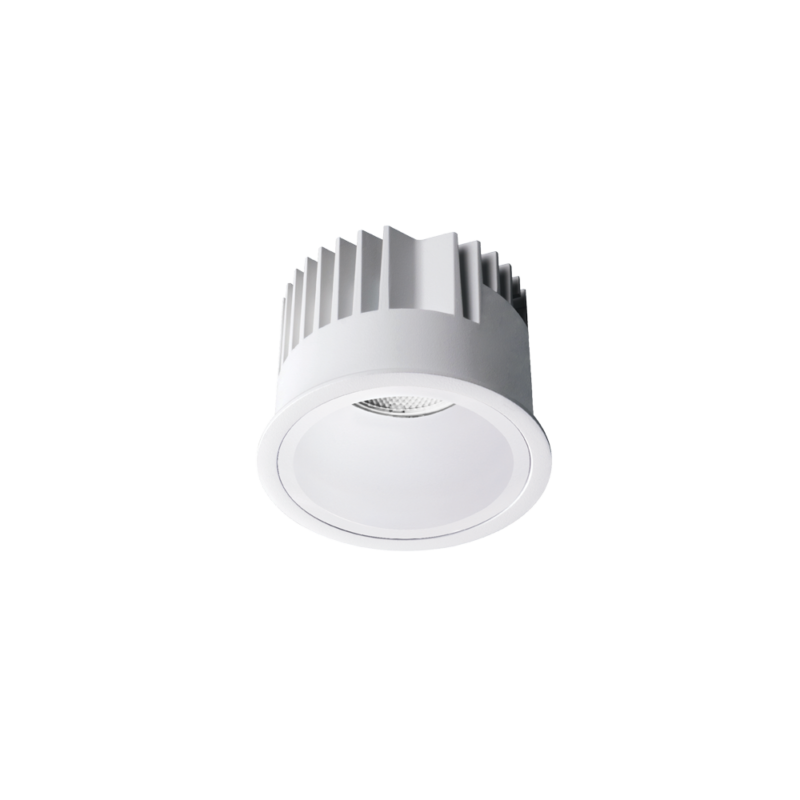

Mirage M110 Downlight
Absolute Luminous Flux
9W (250mA)
950lm (at 3000K)
1039lm (at 4000K)
13W (350mA)
1218lm (at 3000K)
1298lm (at 4000K)
Beam
30° (N) | 50° (M)

Type
Mirage M160 Downlight
Absolute Luminous Flux
18W (500mA)
2022lm (at 3000K)
2131lm (at 4000K)
25W (700mA)
2701lm (at 3000K)
2833lm (at 4000K)
Beam
30° (N) | 60° (W)

Type

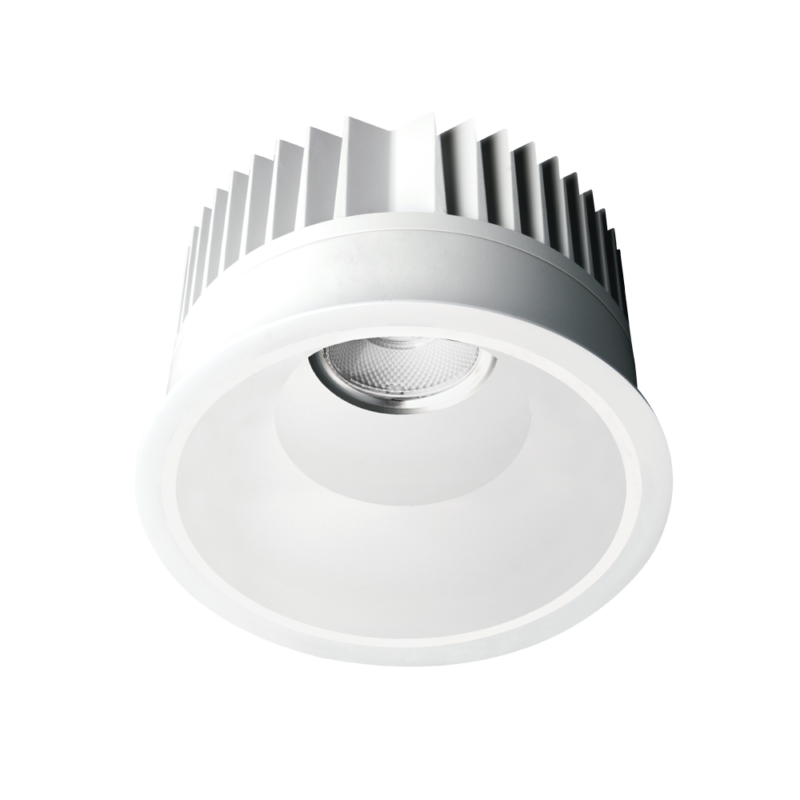

Mirage M218 Downlight
Absolute Luminous Flux
25W (700mA)
2787lm (at 3000K)
2998lm (at 4000K)
38W (1050mA)
3875lm (at 3000K)
4134lm (at 4000K)
52W (1400mA)
4827lm (at 3000K)
5046lm (at 4000K)
Beam
18° (P) | 30° (N) | 60° (W)

Thông số kỹ thuật

Finish

Textured Black/Silver
Textured Black
Textured Black/White
Textured White/Silver
Textured White/Black
Textured White

Diameter

Ø84mm
Ø110mm
Ø160mm
Ø218mm

Material

Powder Coated Aluminium

IP Rating

IP54

UGR

<16
<19

Warranty

5 Years

Colour Temp

3000K
4000K

CRI

92+ (R9: >50)

Efficacy

Up to 107lm/W

Colour Deviation

SDCM≤2

Lifetime

>55,000h L80B10

Mô tả sản phẩm

The Mirage Downlight Series is the complete commercial downlight package. Designed with every commercial application in mind, it is equipped with a powerful light engine and an ingenious design with 4 standard and 2 wallwasher sizes, minimising glare and simplifying installation.
