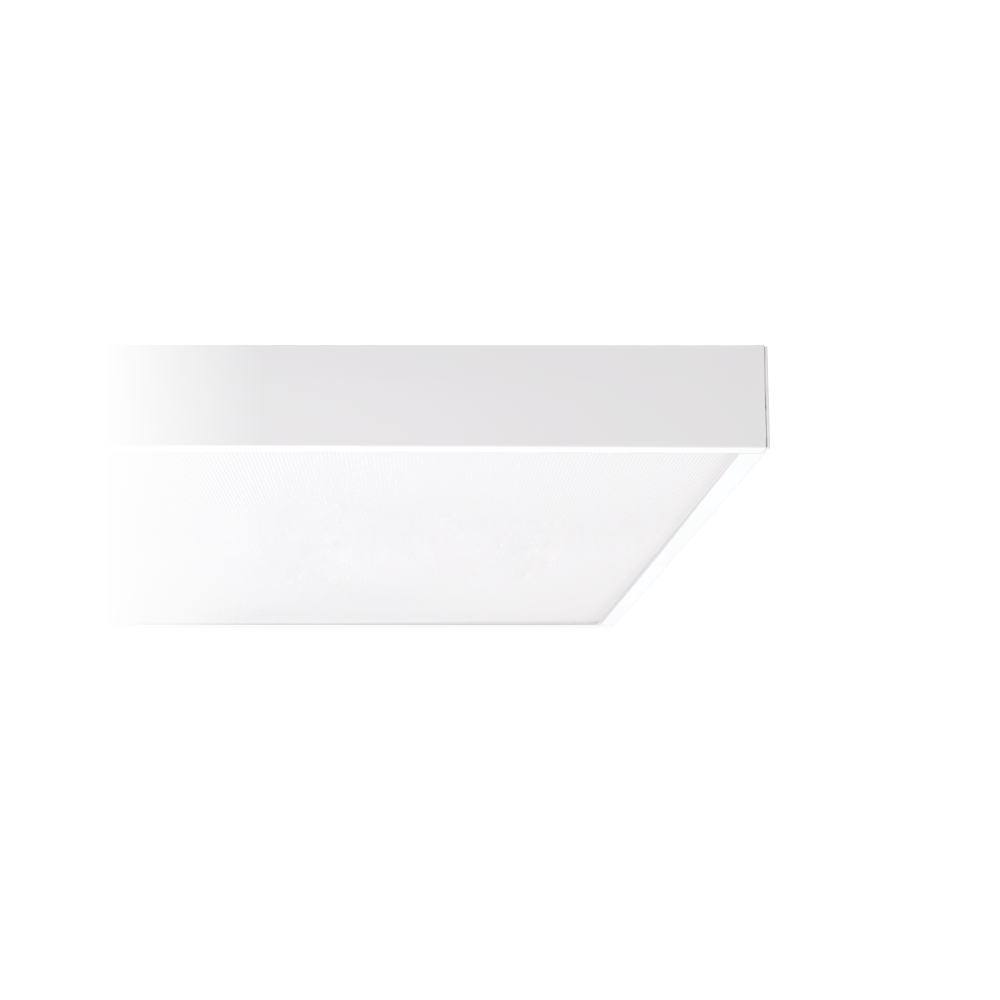

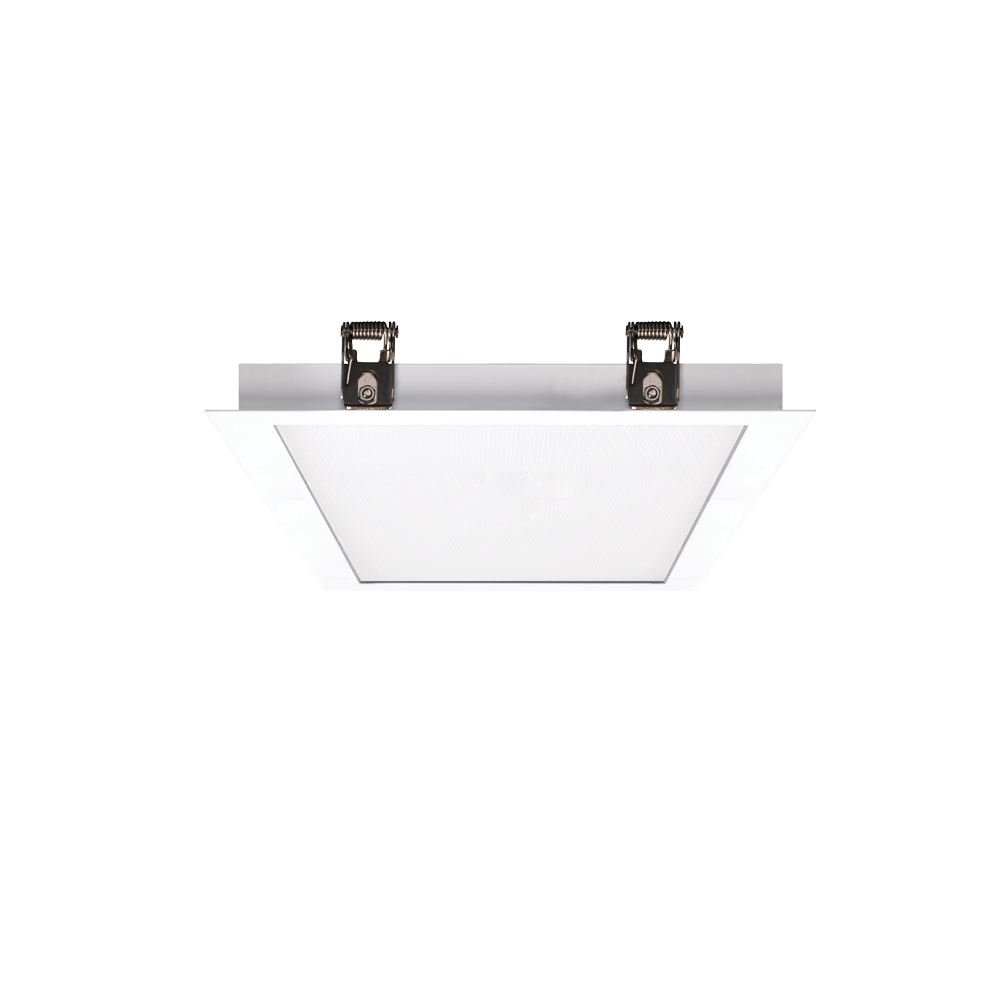

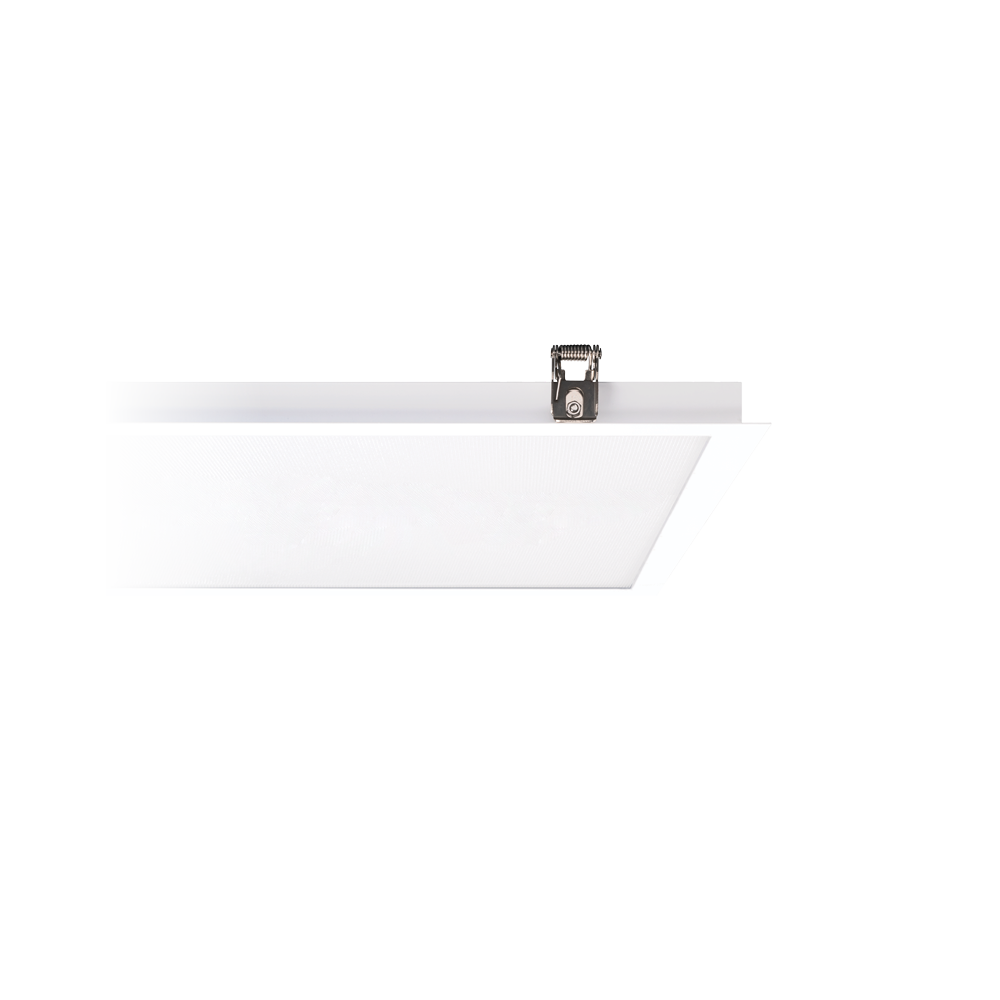

IGM-Diamond G2 Panel Light
The Diamond G2 Panel Series is a completely reimagined interpretation of a panel light, designed to be more efficient, versatile and with best in class longevity. Equipped with the most advanced LED technology and a new polycarbonate diffuser, this new panel series delivers over 30% improvement in lumen efficacy and 40% improvement in lifetime. The next generation of panel light has arrived.
Tùy chọn
Type
300x600 (T-Bar)Essential Model
26W (750mA)
2670lm (at 4000K)Beam Angle
85° (F)
Type
600x600 (T-Bar)Essential Model
27W (750mA)
3164lm (at 4000K)
35W (1000mA)
4050lm (at 4000K)High Efficiency Model
17W (500mA)
2533lm (at 4000K)
25W (750mA)
3678lm (at 4000K)High Colour (COI)
17W (500mA)
1918lm (at 4000K)
25W (750mA)
2877lm (at 4000K)
33W (1000mA) 3835lm (at 4000K)Beam Angle
90° (F)
Type
300x1200 (T-Bar)Essential Model
27W (750mA)
2670lm (at 4000K)
35W (1000mA)
3439lm (at 4000K)High Efficiency Model
17W (500mA)
2243lm (at 4000K)
25W (750mA)
3895lm (at 4000K)High Colour (COI)
17W (500mA)
1816lm (at 4000K)
25W (750mA)
2724lm (at 4000K)
33W (1000mA)
3632lm (at 4000K)Beam Angle
85° (F) | 90° (F)
Thông số kỹ thuật
Finish
Matt White
Material
Powder Coated Aluminium, MS LGP, Polystyrene Diffuser
Powder Coated Aluminium, PMMA LGP, Polystyrene Diffuser
Powder Coated Aluminium, PMMA LGP, Polycarbonate Diffuser
IP Rating
IP20
IP44
UGR
<19
Warranty
5 Years
Colour Temp
3000K
4000K
CRI
80+ (R9: >0)
90+ (R9: >50)
Efficacy
Up to 114lm/W
Up to 139lm/W
Up to 107lm/W
Colour Deviation
SDCM≤3
Lifetime
>69,000h L80B10
